W.4 Turbo Upgrade, Mercedes M177
Purchase W.4 Turbo Upgrade, Mercedes M177
  • SKU: 01-177-01550-7

    W.4 Turbo Upgrade, Mercedes M177

  • Advertised gains are estimates of HP and Torque “at the engine” calculated from gains as measured on a Dynojet Dynamometer in ideal conditions and typically show the largest possible change.  Actual gains are dependent on the following: Learn More about Crank HP Vs Wheel HP

    Model – Manufacturers use the same engine in multiple model vehicles and often times they are in a different state of tune, for example: 2008 C63 and a 2008 CLK Black Series.  Both have the same engine, but the C63 has 451hp while the CLK63 has 500hp.  Naturally the C63 will show more gains as it starts at a lower level.

    Model Year – Similar to above, as time progresses, Manufacturers tend to slightly increase power output via software from one year to the next or offer “Performance Packages” with increased power.  The engines remain largely unaltered and as a result, final tuned output remains the same, while the gains are lower as the starting point is now higher.

    Fuel – Fuel quality is HIGHLY important with performance vehicles.  Low quality and/or low octane fuel will greatly impact engine output and potentially even engine health.  Top tier brand premium fuels should always be used to achieve the best results possible.

    Drivetrain – All wheel drive has higher drivetrain losses than rear wheel drive.  This results in lower numbers when testing on a chassis dyno.  Wheel/tire size and weight will also impact chassis dyno results

    Weather/Conditions – Temperature, humidity, altitude, and air density all impact engine performance.  Heat, high humidity, and thin air will all work towards reducing engine output

    Engine Health – Higher miles tends to result in increased build up and lower compression which can and will impact engine output.  Properly maintained engines will have better performance than abused or neglected engines.

    Supporting modifications – The highest power levels require supporting modifications.  Depending on the engine, this could mean forged internals, built transmission, upgraded fuel system, 110+ octane race fuel, etc.

  • Choose from Recommended Products (Optional):
  • $9,699.00 $9,699.00

  • Estimated Backorder time: 8 weeks

  • Prop 65 warning
    Warning

    This product can expose you to chemicals including carbon black, silica - crystalline, formaldehyde, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Weistec Horsepower 950
Weistec Torque 800
Turbo Type W.4 (Complete Replacement)
Manufacturer Weistec
Street legal in all the US States No
Engine Family M177
See more
year make model trim engine
2023 Mercedes-Benz C63 AMG S Cabriolet (A205) Twin Turbo 4L V8 (M177)
2022 Mercedes-Benz C63 AMG S Cabriolet (A205) Twin Turbo 4L V8 (M177)
2021 Mercedes-Benz C63 AMG S Cabriolet (A205) Twin Turbo 4L V8 (M177)
2020 Mercedes-Benz C63 AMG S Cabriolet (A205) Twin Turbo 4L V8 (M177)
2019 Mercedes-Benz C63 AMG S Cabriolet (A205) Twin Turbo 4L V8 (M177)
2018 Mercedes-Benz C63 AMG S Cabriolet (A205) Twin Turbo 4L V8 (M177)
See more

Product Description



EngineBay

Comprehensive Turbo Upgrade

The Weistec Engineering M177 / M178 W.4 Turbo Upgrade is the key to making the most power with the M177 and M178 engines without compromise in drivability or reliability.

The turbo upgrade, as with all W.4 Upgrades, is a comprehensive turbo upgrade that completely replaces the factory turbocharges. The new turbochargers are ball bearing units with CNC machined billet aluminum compressor wheels rated much higher than the stock units. The Weistec compressor covers provide mounting for the OEM wastegate actuators and is compatible with the stock charge piping. A 3 inch anti-surge inlet is standard to provide unrestricted flow to the compressor.

The Weistec Turbine Housings have V-Band inlets, to allow for a cleaner and easier install, and turbine outlets that not only match the factory location, also have the same flange design to use the same Weistec Downpipes and Midpipes as the stock turbos.

Key Features

  • Twin Ball Bearing Turbochargers
  • Increased compressor air flow
  • Weistec M177/M178 Compressor Covers
  • Weistec Cast Stainless Steel M177/M178 Turbine Housings
  • Custom Turbo Coolant Lines and Fittings
  • Custom Turbo Oil Lines and Fittings
  • Weistec Turbo Intake Couplers
  • Bolt on installation
  • All hardware and gaskets are included
  • 900+HP Capable with supporting upgrades
  • Designed to use Stock or Weistec Downpipes
  • Compatible with Factory Downpipes
  • Reuses Stock Wastegate Actuators
  • No Core Charge
TurboKit

Supporting Upgrades


To push past 900 horsepower with the W.4 turbo upgrade, supporting mods aren't optional. They're essential. Each component is engineered to work in sync with the W.4 system, ensuring maximum performance, reliability, and efficiency. While the turbo can run without most of them, you'll be leaving serious power on the table.

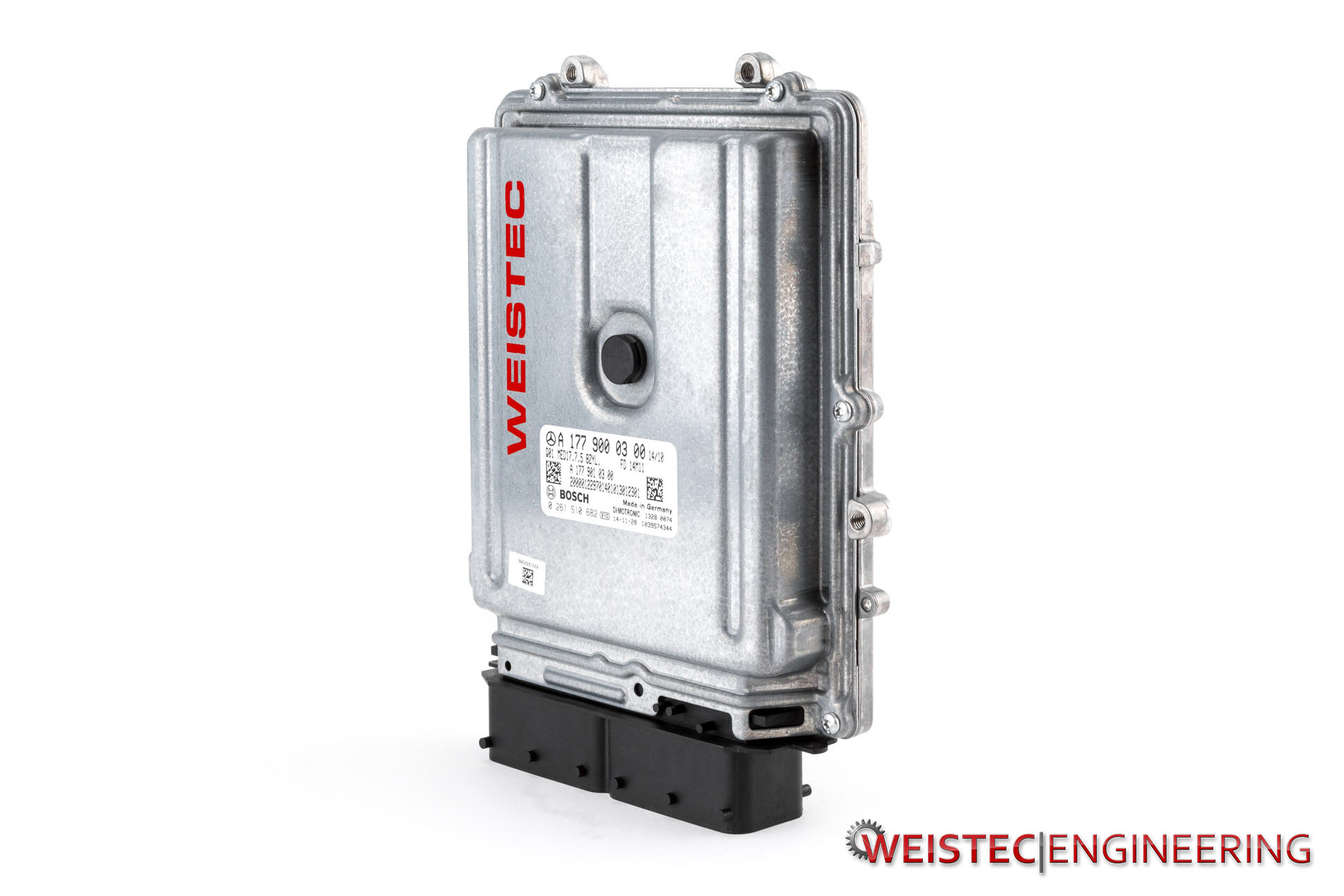

Mercedes Benz M177 ECU

ECU tuning


(required)


This is most important supporting upgrade. Tuning your Engine Control Unit (ECU) is what brings all your performance upgrades together. It recalibrates the engine's brain, optimizing fuel, boost, timing, and more to work seamlessly with your new performance upgrades. Without it, the ECU will still try to run the engine like it's stock, which can limit power, cause drivability issues, or even damage components. ECU tuning can be done by your local trusted tuner or you can contact us to see available tuning options.

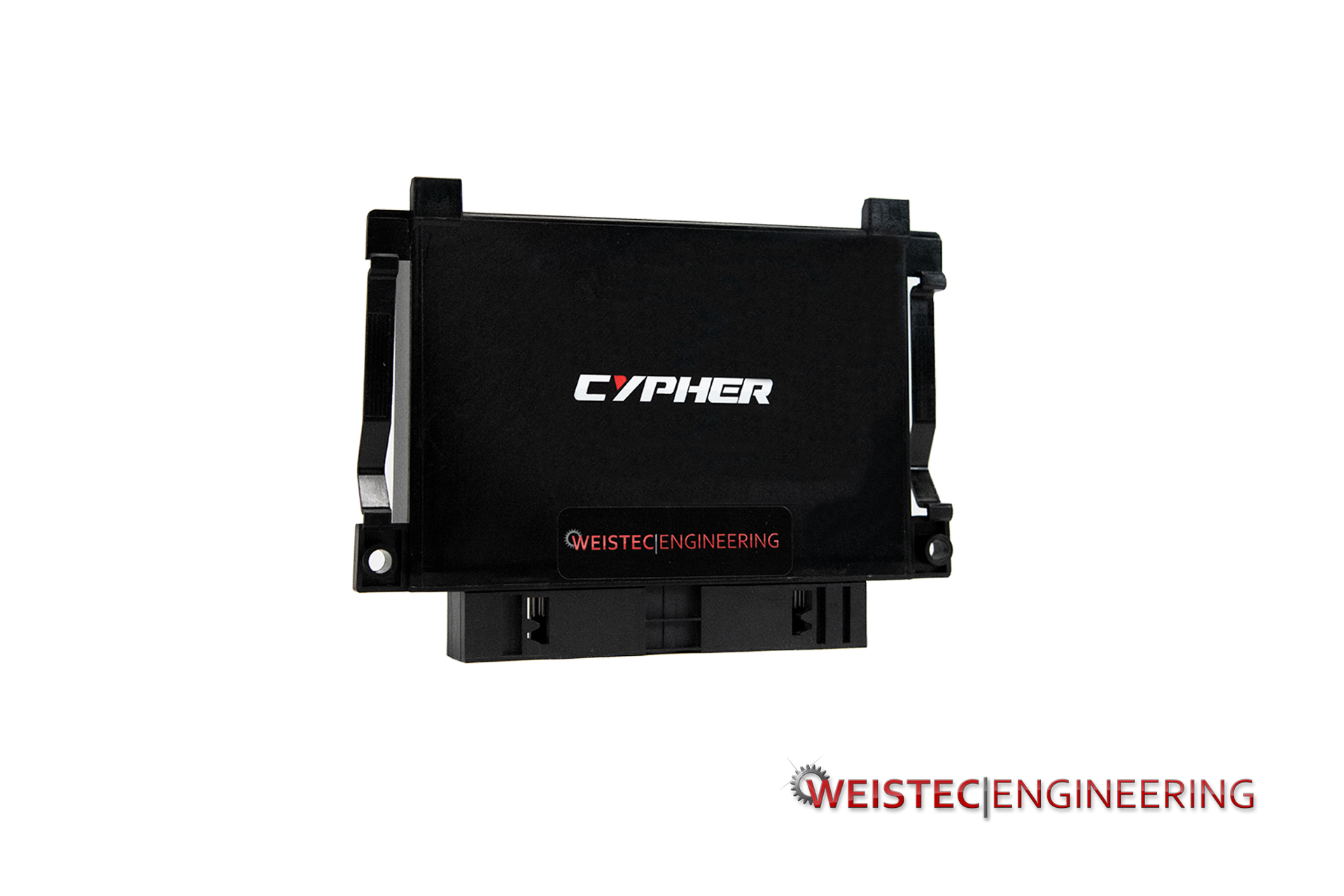

Weistec CPC Module


(required for newer models)

The Computer Powertrain Control (CPC) Module can found in modern Mercedes vehicles. It is home to several torque limiters that used to be solely in the ECU. The Weistec CPC module is a complete replacement for the factory CPC module and it removes all torque limiters, allowing the engine to produce maximum power without restrictions. In general, 2019+ Mercedes vehicles have the CPC module, but some older models with the 9G-Tronic transmission may also have it. Please contact tuning@weistec.com to confirm if your vehicle has a CPC module.
See Product

Weistec CPC Module

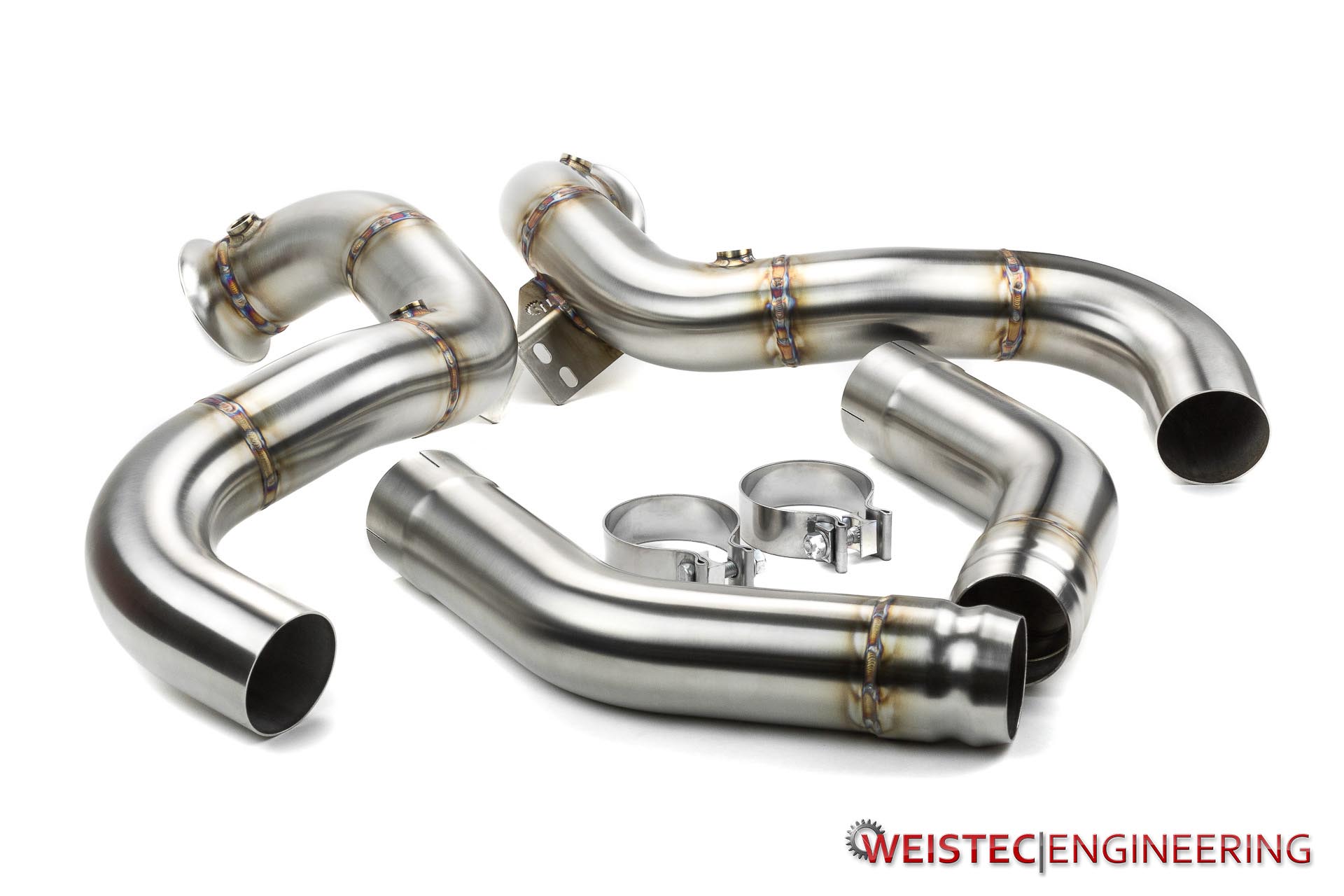

Weistec Downpipes for Mercedes Benz GLC63 AMG

Downpipes*


(required)

Our downpipes are designed to increase exhaust flow, reduce back pressure, and improve turbo spool time. This results in increased horsepower and torque. High flow cats may be also be used instead of downpipes, but they will not provide the same level of performance as downpipes.
See GLC63 Downpipes
See C63 Downpipes

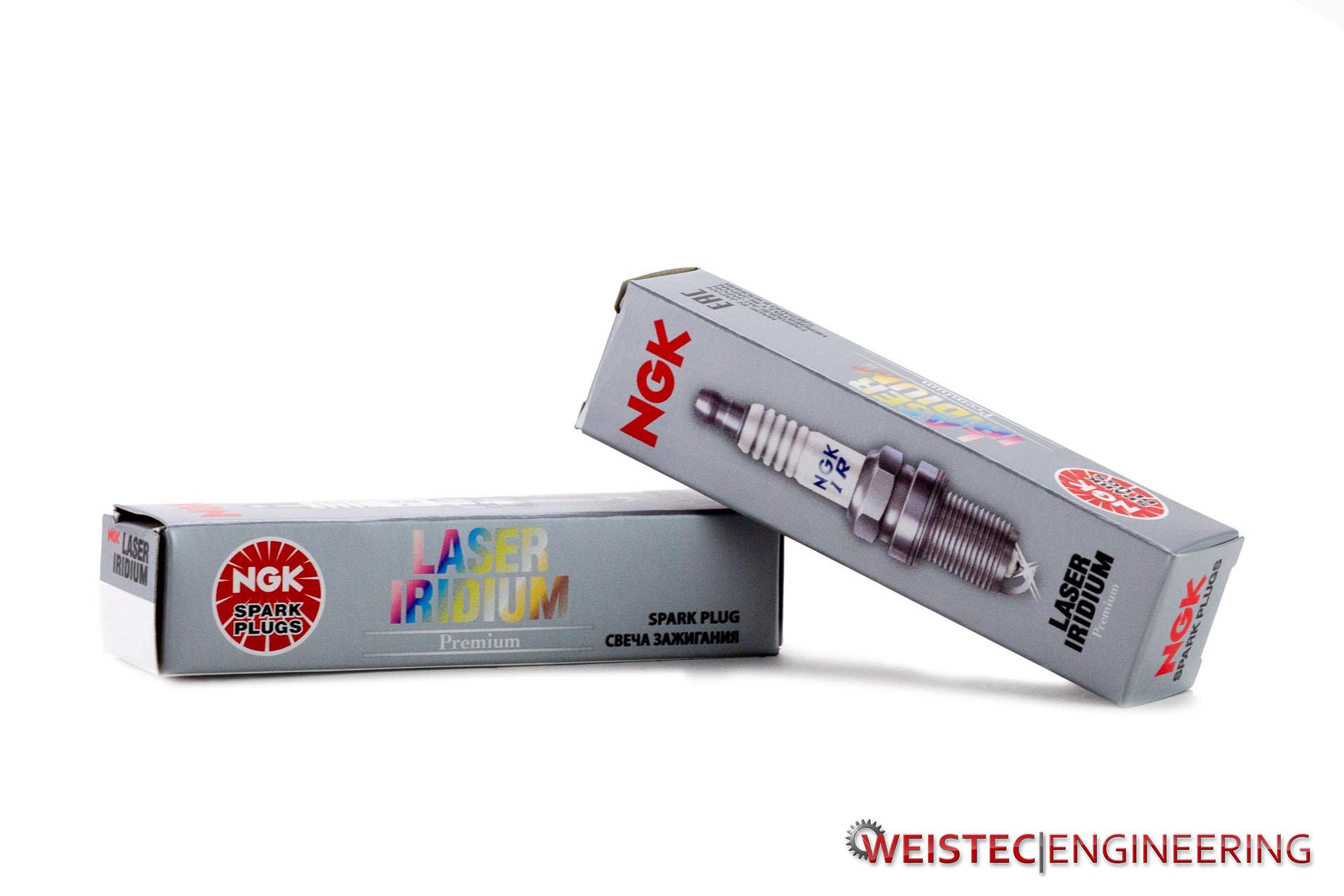

Performance Spark Plugs


(Highly Recommended)

Higher boost means more heat. Performance spark plugs dissipate heat more efficiently. This means better cooling and improved knock resistance!
See Product

M177 Performance Spark Plugs

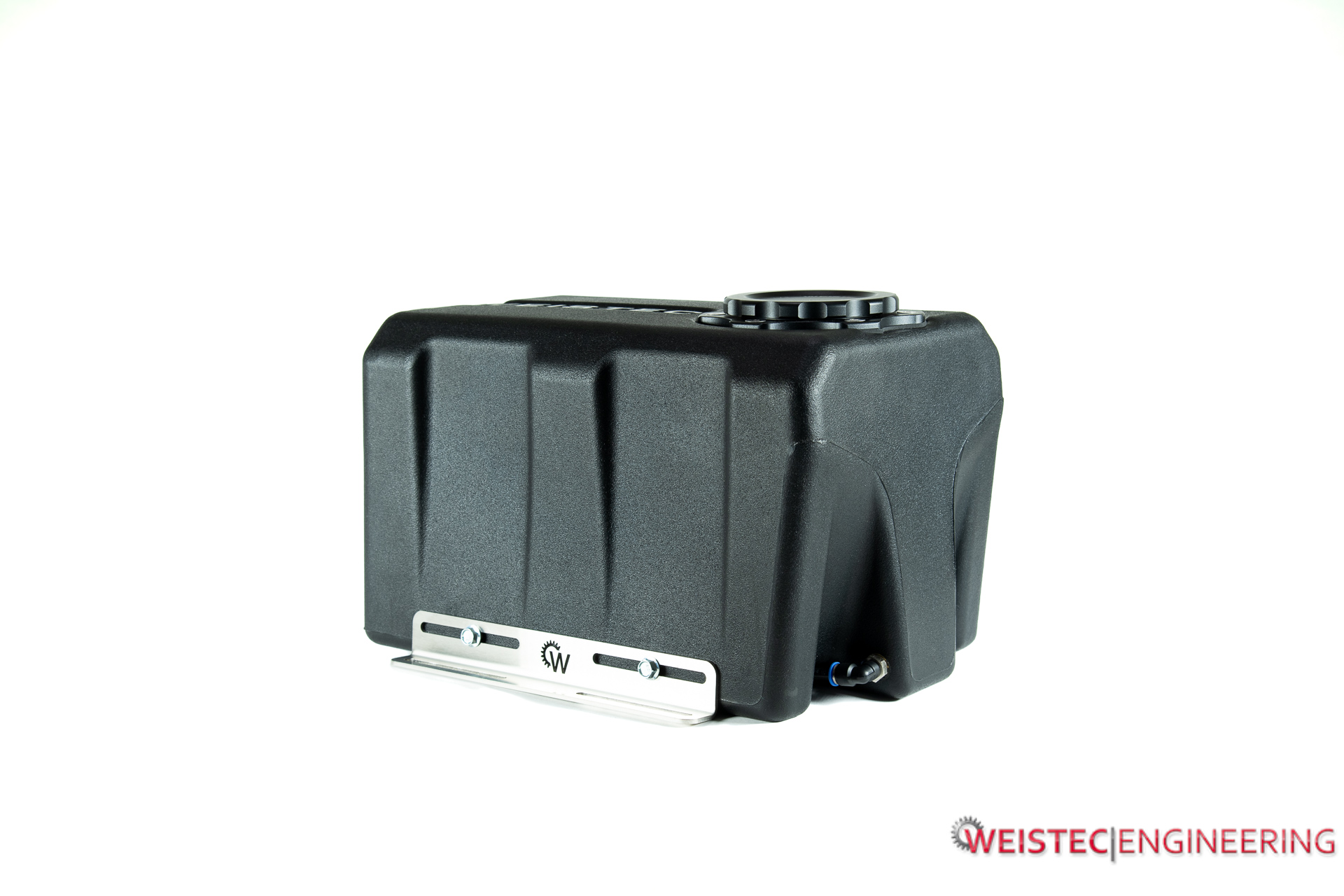

Water Methanol Injection System for Mercedes Benz M177

Water-Methanol Injection System


(Higly Recommended)

High performance engines run extremely hot. Water-Methanol Injection Systems provide cooling and boosts octane. All this combined leads to increased performance and knock resistance.
See Product

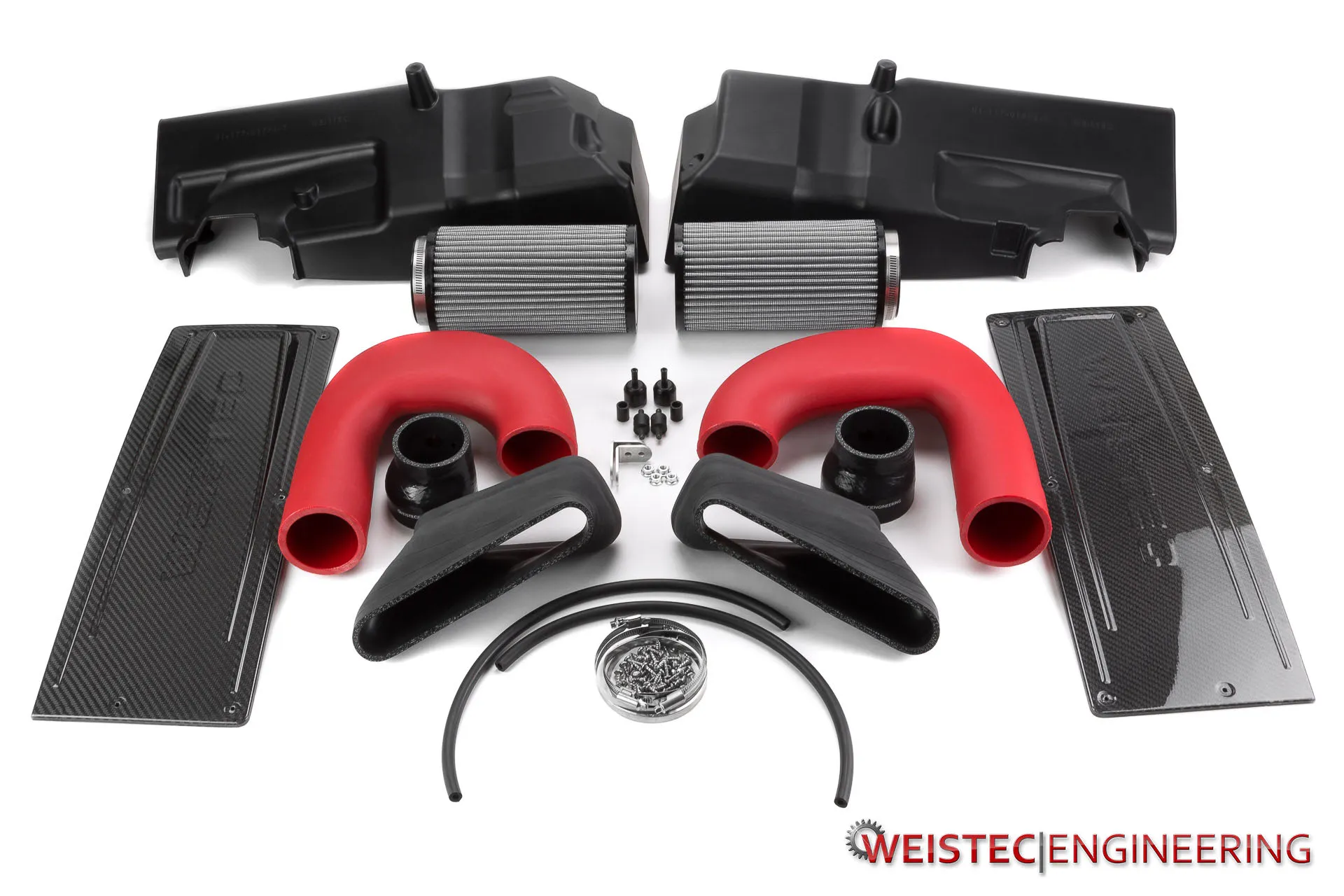

Carbon Fiber Airboxes


(Recommended)

More air flow. More Power! Our Carbon Airboxes increase filter surface area by 225% over OEM and are purpose-built to complement the W.4 turbo upgrade, maximizing intake efficiency.
See Product

M177 Carbon Fiber Airboxes

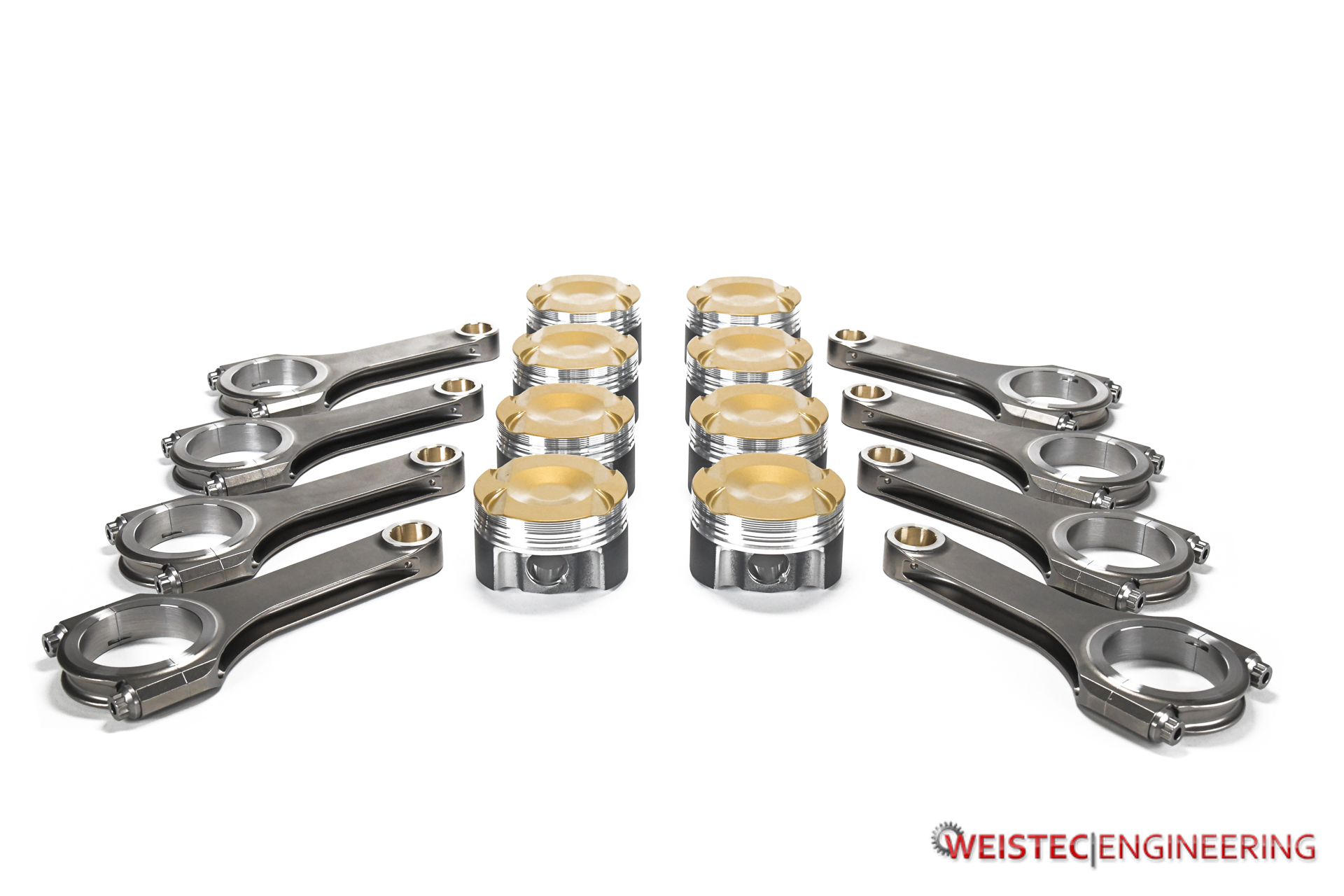

Weistec Forged Pistons and Billet Rods for Mercedes Benz M177

Forged Pistons and Billet Rods


(Recommended)

Built from stronger materials than OEM, our forged pistons and billet rods are engineered to handle increased power and high boost ensuring greater engine strength, reliability, and safety under extreme conditions.
See Product

TCU tuning


(Recommended)

While this upgrade doesn't add any horsepower to your vehicle, it does make sure that your vehicles puts it down to the pavement as efficiently and aggressively as possible. Our Transmission Control Unit (TCU) tuning increases line pressure resulting in faster shifts, reduced slipping and increased torque capacity.
See 7 speed TCU Tuning
See 9 speed TCU Tuning

Cypher TCU Tuning FlashTool

*Weistec Downpipes are not for sale in the United States.
