KW Dynamic Dampening Control ECU Coilover Kit | 06-16 V8 Vantage 10mm Damper Piston

Purchase KW Dynamic Dampening Control ECU Coilover Kit | 06-16 V8 Vantage 10mm Damper Piston

SKU: 39033001
KW Dynamic Dampening Control ECU Coilover Kit | 06-16 V8 Vantage 10mm Damper Piston
Power gain Up To
+0 HP

Torque gain Up To
+0 TQ

Advertised gains are estimates of HP and Torque “at the engine” calculated from gains as measured on a Dynojet Dynamometer in ideal conditions and typically show the largest possible change. Actual gains are dependent on the following: Learn More about Crank HP Vs Wheel HP

Model – Manufacturers use the same engine in multiple model vehicles and often times they are in a different state of tune, for example: 2008 C63 and a 2008 CLK Black Series. Both have the same engine, but the C63 has 451hp while the CLK63 has 500hp. Naturally the C63 will show more gains as it starts at a lower level.

Model Year – Similar to above, as time progresses, Manufacturers tend to slightly increase power output via software from one year to the next or offer “Performance Packages” with increased power. The engines remain largely unaltered and as a result, final tuned output remains the same, while the gains are lower as the starting point is now higher.

Fuel – Fuel quality is HIGHLY important with performance vehicles. Low quality and/or low octane fuel will greatly impact engine output and potentially even engine health. Top tier brand premium fuels should always be used to achieve the best results possible.

Drivetrain – All wheel drive has higher drivetrain losses than rear wheel drive. This results in lower numbers when testing on a chassis dyno. Wheel/tire size and weight will also impact chassis dyno results

Weather/Conditions – Temperature, humidity, altitude, and air density all impact engine performance. Heat, high humidity, and thin air will all work towards reducing engine output

Engine Health – Higher miles tends to result in increased build up and lower compression which can and will impact engine output. Properly maintained engines will have better performance than abused or neglected engines.

Supporting modifications – The highest power levels require supporting modifications. Depending on the engine, this could mean forged internals, built transmission, upgraded fuel system, 110+ octane race fuel, etc.
Please confirm:
NOT LEGAL FOR SALE OR USE ON POLLUTION CONTROLLED MOTOR VEHICLES
Learn why

Confirmation
Please confirm that you are not installing this product within the United States.

This policy only applies to installers and/or users who are in the United States, customers who reside in other countries should act in accordance with their local laws and regulations.

Some Weistec Engineering performance upgrades may solely be used on vehicles in sanctioned competition which may never be used upon a public road or highway, unless permitted by specific regulatory exemptions (such as a CARB E.O.). For state specific details please visit the following website. http://www.semasan.com/emissions

It is the responsibility of the installer and/or user of the product to ensure that it is used in compliance with all applicable laws and regulations. If a product was purchased in error, do not install and/or use it. The purchaser must arrange to return the product(s) for a full refund.

All performance modifications and installations are at the customer’s own risk. Weistec Engineering holds no responsibility either implied or otherwise for mechanical, electrical or other failure when using any aftermarket performance products.
$7,969.00 $7,969.00
QTY:
How To Tune

Install instructions
Prop 65 warning

Warning
This product can expose you to chemicals including carbon black, silica - crystalline, formaldehyde, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product details

Manufacturer	KW Suspensions
UPC	847691031209

Vehicle application

year	make	model	trim	engine
2016	Aston Martin	Vantage V8	GT	4.7L V8 (AM15)
2015	Aston Martin	Vantage V8	GT	4.7L V8 (AM15)
2016	Aston Martin	Vantage V8	S	4.7L V8 (AM15)
2015	Aston Martin	Vantage V8	S	4.7L V8 (AM15)
2014	Aston Martin	Vantage V8	S	4.7L V8 (AM15)
2013	Aston Martin	Vantage V8	S	4.7L V8 (AM15)
2012	Aston Martin	Vantage V8	S	4.7L V8 (AM15)
2011	Aston Martin	Vantage V8	S	4.7L V8 (AM15)
2016	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2015	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2014	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2013	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2012	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2011	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2010	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2009	Aston Martin	Vantage V8	Base	4.7L V8 (AM15)
2008	Aston Martin	Vantage V8	Base	4.3L V8 (AM05)
2007	Aston Martin	Vantage V8	Base	4.3L V8 (AM05)
2006	Aston Martin	Vantage V8	Base	4.3L V8 (AM05)
See more

Instructions

Install instructions

Product Description

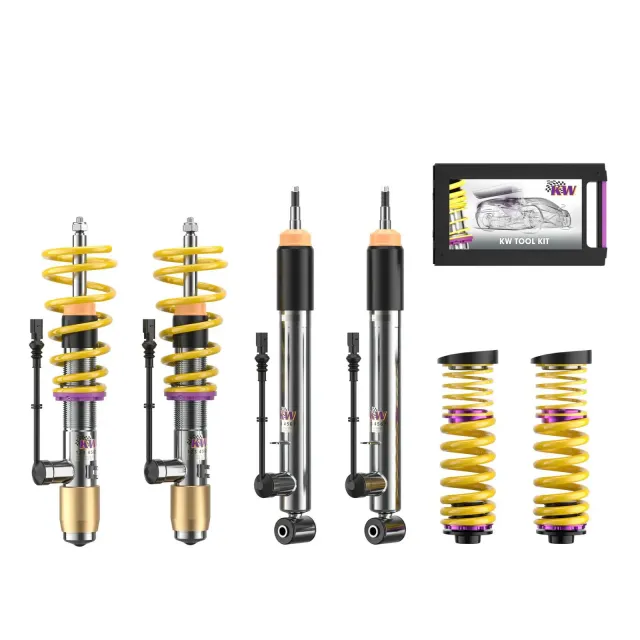

Experience the innovation and quality of high-end engineering: the KW DDC (Dynamic Damping Control) ECU (Electronic Control Unit) coilover suspension, made in Germany. For the first time with its electronically adjustable dampers, the KW DDC ECU coilover system combines intelligent, app-controlled suspension tuning with ride height adjustability. This gives you the opportunity to upgrade your vehicle with an adaptive damper system and electronically control the level of performance or comfort that meets your requirements. Included in the package is a KW INOX-LINE coilover suspension with high-quality stainless steel struts, electronically adjustable dampers, a high-performance electronic damper control unit with a vehicle-specific set of cables, a KW DDC control button giving you control from the comfort of the drivers seat, and an elaborate assembly instructions for an easy installation. The KW DDC ECU suspension features three vehicle-specific damper setups. At the touch of a button you can choose between the basic Sport setting, a very sporty and performance-oriented Sport+ setup or Comfort mode. With the KW DDC button, the respective driving mode, Comfort, Sport, or Sport+ can be selected changing the adaptive KW DDC ECU coilover kit damper setting within milliseconds. In Sport+ mode, the adaptive KW dampers give every car an unadulterated driving behavior. A setup which is ideal for demanding rides on twisty roads with lots of load changes. The Sport mode, is perfect for driving on the highway with long curves, while the Comfort mode is the ideal for traveling on poorly developed roads. In Comfort mode, the suspension will also adjusts automatically to sudden maneuvers. If you add the additional DDC WLAN module to the KW DDC ECU kit the adaptive dampers of the KW DDC ECU suspension can be adjusted independently per axle to your personal driving style and conditions. The App is compatible with smartphones and tablets from Apple (iOS) and many Android devices.

Application Guide

2006-2017 Aston Martin V8 (VH2), piston rods diameter = 10mm Vantage incl. S and Roadster

Key Features and Benefits

KW suspensions DDC ECU coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany.
Every single damper is dyno tested to ensure functionality and guarantee accuracy before being released for delivery.
KW DDC ECU electronically controlled coilover suspension features three vehicle-specific damper setups. At the touch of a button you can choose between the basic Sport setting, a very sporty and performance-oriented Sport+ setup or Comfort.
Optional W-LAN module allows custom adjustments as well as storing and sharing of custom presets.
Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Seamless Ride Height Adjustment - the corrosion resistance of the Inox-line stainless steel and composite perches means easy ride height adjustability to help you dial in your preferred look.
Elastomer Bump stop with integrated dust protection system prevents water and dirt particles reaching the piston rod and seals. The highly resilient bump stops act as dynamic load limiters while maintaining ride quality and durability.
