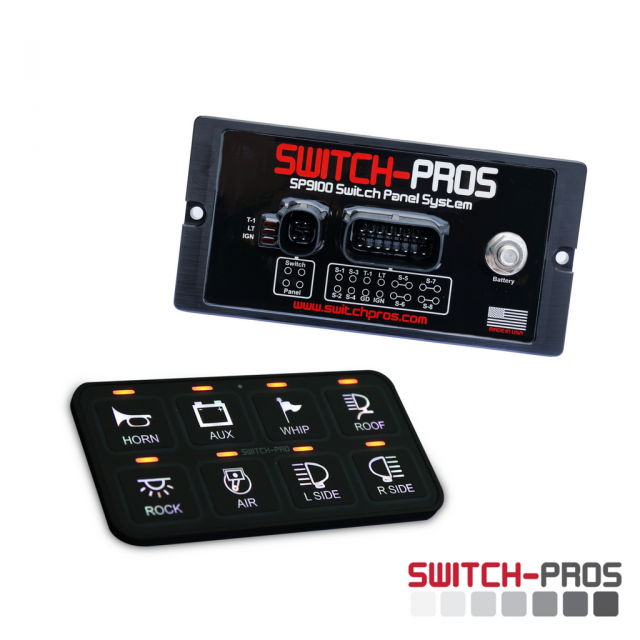

SP9100 Switch Panel Power System
Purchase SP9100 Switch Panel Power System
  • SKU: switch-pros-sp9100

    SP9100 Switch Panel Power System

  • $659.00 $659.00

  • Prop 65 warning
    Warning

    This product can expose you to chemicals including carbon black, silica - crystalline, formaldehyde, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Manufacturer Switch-Pros
year make model trim engine
2024 Rivian R1S
2023 Rivian R1S
2022 Rivian R1S
2021 Rivian R1S
2024 Rivian R1T
2023 Rivian R1T
See more

Product Description



Detailed Specifications

Switch Panel Specs

  • RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
  • Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
  • Orange LED switch indicators
  • 100 User Selectable Legends

Power Module Specs

  • 11' of Communication Cable between Switch Panel and Power Module
  • Color Coded Output wires
  • Wire harness with Waterproof, sealed automotive grade connectors
  • Power Cable with 125A inline fuse

All Systems include

  • 125 User-selectable switch legends
  • Eight user-programmable switches
  • Four 35A circuits and four 20A circuits
  • Waterproof, Solid State 125A Power Module
  • RGB Backlighting provides unlimited color options, using Color Picker on App
  • Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
  • Switches can be programmed for:
    • On/Off or Momentary
    • Ignition or Battery Input
    • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
    • Memory Function
    • Master Mode, with ability to turn multiple outputs On AND Off with one touch
    • Automatic Power-Up upon vehicle start up
  • Two External trigger inputs can each activate up to four outputs (Active High or Active Low)
  • Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
  • Sleep Mode for minimal power consumption
  • Color Coded circuit wires
  • LED Input Status Indicators for easy troubleshooting
  • Time Delay Off function available for all circuits
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • Program and control the system from switch panel pad or smart phone
  • Bluetooth interface with FREE Apple or Android App
  • Battery Voltage Readout on App screen
  • No Fuses or Bulky Relay box
  • Built-In Bluetooth Module

Kit Also Includes

  • 11' of Communication Cable between Switch Panel and Power Module
  • Color Coded Output wires
  • Wire harness with Waterproof, sealed automotive grade connectors
  • Power Cable with 125A inline fuse
  • RCR-Touch®8
